Intel Desktop Board DX58SO2 Product Guide

Connecting to the Internal Headers

Before connecting cables to any of the internal headers, observe the precautions in

“Before You Begin” on page 31. Figure 23 shows the location of the internal headers

on Intel Desktop Board

DX58SO2.

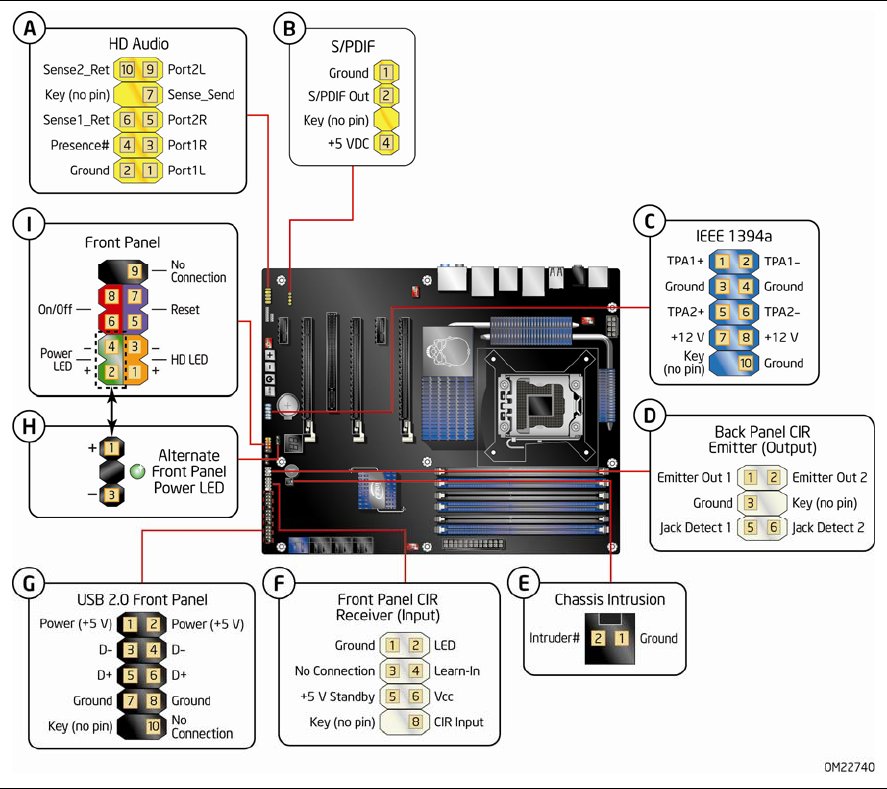

Figure 23. Internal Headers
