Installing and Replacing Desktop Board Components

4. Remove the processor from the protective processor cover. Hold the processor

only at the edges, being careful not to touch the bottom of the processor (see

Figure 11). Do not discard the

protective processor cover. Always replace the

processor cover if the processor is removed from the socket.

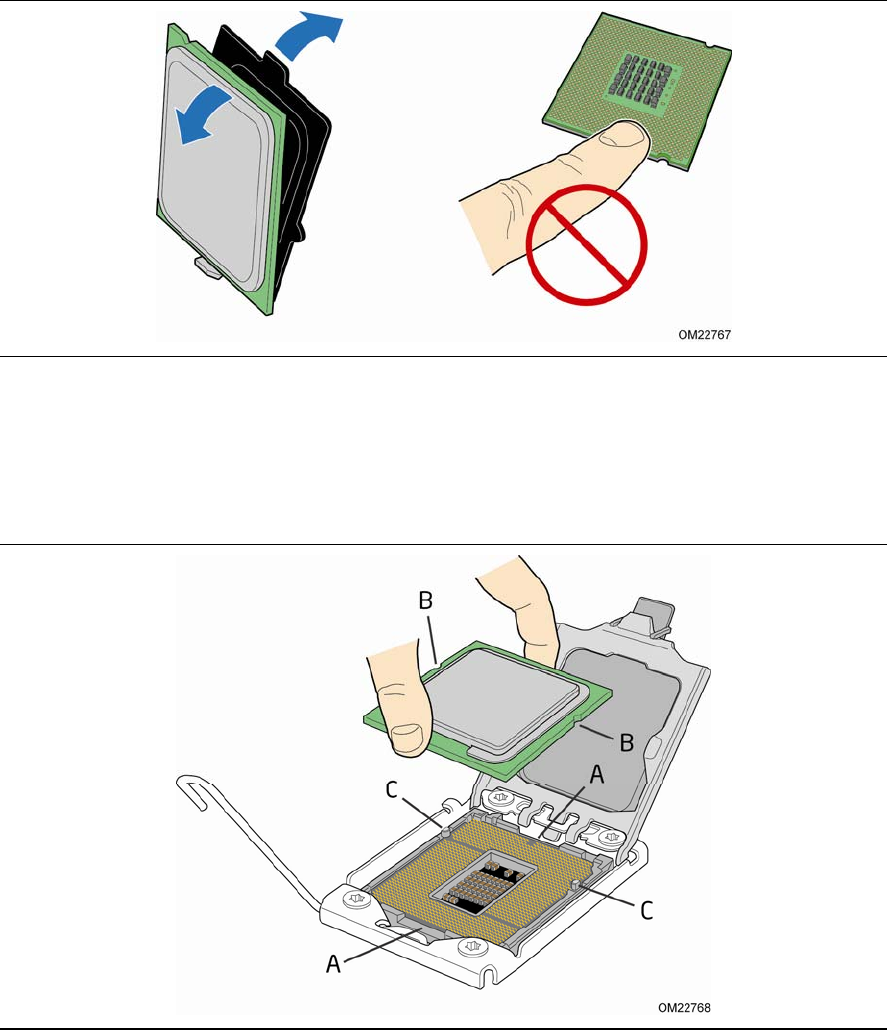

Figure 11. Remove the Processor from the Protective Processor Cover

5. Hold the processor with your thumb and index finger oriented as shown in

Figure 12. Make sure your fingers align to the socket cutouts (Figure 12, A). Align

notches

(Figure 12, B) with the posts on the socket (Figure 12, C). Lower the

processor straigh

t down without tilting or sliding it in the socket.

Figure 12. Install the Processor
