Intel NetStructure

MPRTM0020 Technical Product Specification – April 2006 9

Functional Overview

Functional Overview 2

Rear Transition Modules (RTM) are important components in many telecommunications and

embedded systems. These environments place most of the active components on a Front Board and

most of the cable connections (especially copper cables) are made from the RTM. This allows the

Front Board to be replaced without the need to reinsert a large number of cables in the correct

order.

In AdvancedTCA* systems, the Front Board mates directly with the RTM, as shown in Figure 1:

The Intel NetStructure

MPRTM0020 Rear Transition Module is designed specifically to work

with the Intel NetStructure MPCBL0020 Single Board Computer.

The MPRTM0020 RTM includes the following interfaces and features:

• One serial port

• One USB 1.1 port

• Two Gigabit Ethernet (RJ45) ports from the Fabric Interface

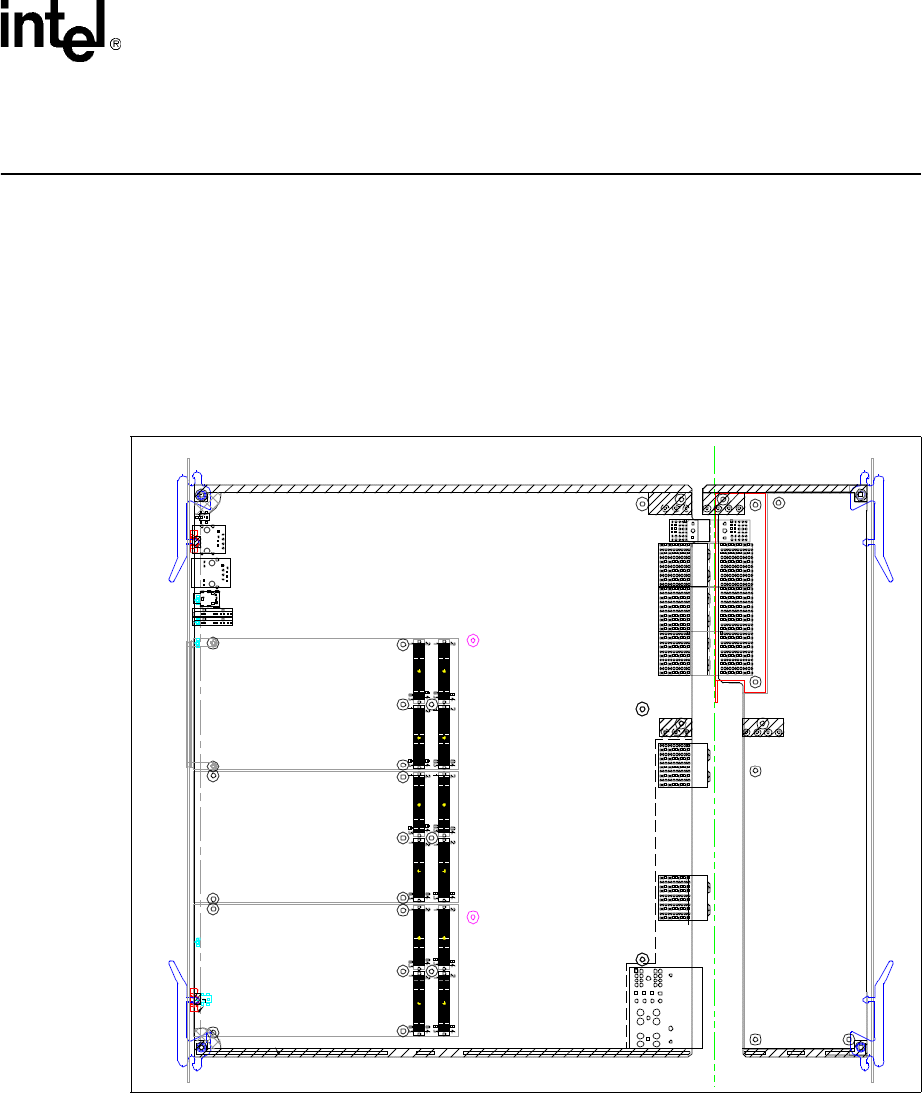

Figure 1. Relationship of RTM to Front Board

Front Board

RTM

1 2 3 4 5 6 7 8 9 10 11 12 13 14 ... 43 44
