12 Intel

NetStructure™ MPCHC5525 System Master Processor Board IPMI Reference Driver User’s Guide

IBMU Functionality

2.1.5.2 Nonintelligent Devices

For the communication between the system management software and nonintelligent devices the

following components are necessary:

• IPMI driver for operating system

• Middleware

• System management software

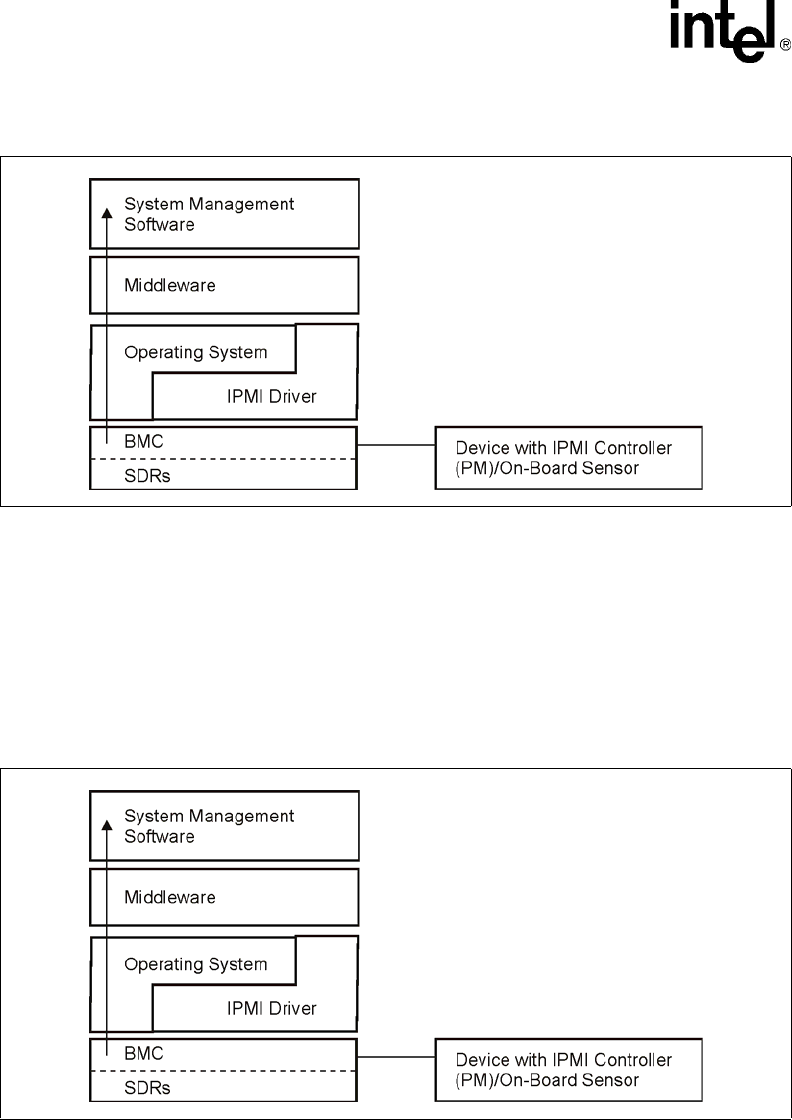

Figure 2. Required Parts for Communication with IPMI Devices and On-Board Sensors

Figure 3. Required Parts for Communication with Nonintelligent Devices
