5.1.2 Signal Listing (S.E.P. Package)

Table 45 and Table 46 provide the processor edge finger and SC242 connector signal definitions

for Celeron processor. The signal locations on the SC242 edge connector are to be used for signal

routing, simulation, and component placement on the motherboard.

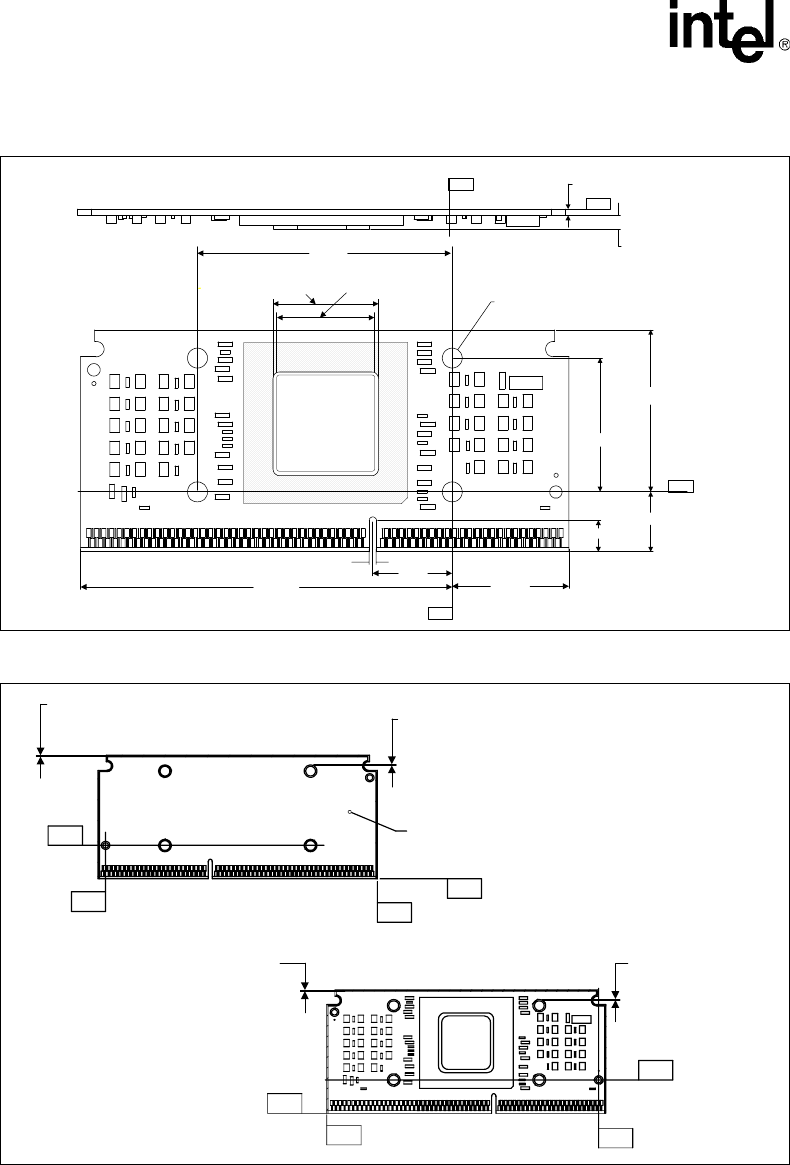

Figure 19. Processor Substrate Dimensions (S.E.P. Package)

Figure 20. Processor Substrate Primary/Secondary Side Dimensions (S.E.P. Package)

-Y-

1.660

.615

1.196

3.804

.814

.323

2.608

1.370

-Y-

27.4 mm SR

Opening Square

25.4 mm Copper

Slug Square

-Z-

-Y-

.062

+.007

-.005

-E-

-D-

-G-

-H-

-E-

-D-

-G-

-H-

Typ Max.

Non-Keepout Area

.025

Typ Max.

Non-Keepout Ar

.025

Typ Max.

Non-Keepout Area

.025

Typ Max.

Non-Keepout Area

.025

Secondary Side

Primary Side

There Will be No Components on

Secodonary Side
