Intel® Xeon® Processor 3500 Series Datasheet Volume 1 101

Boxed Processor Specifications

Notes:

1. Diagram does not show the attached hardware for the clip design and is provided only as a mechanical

representation.

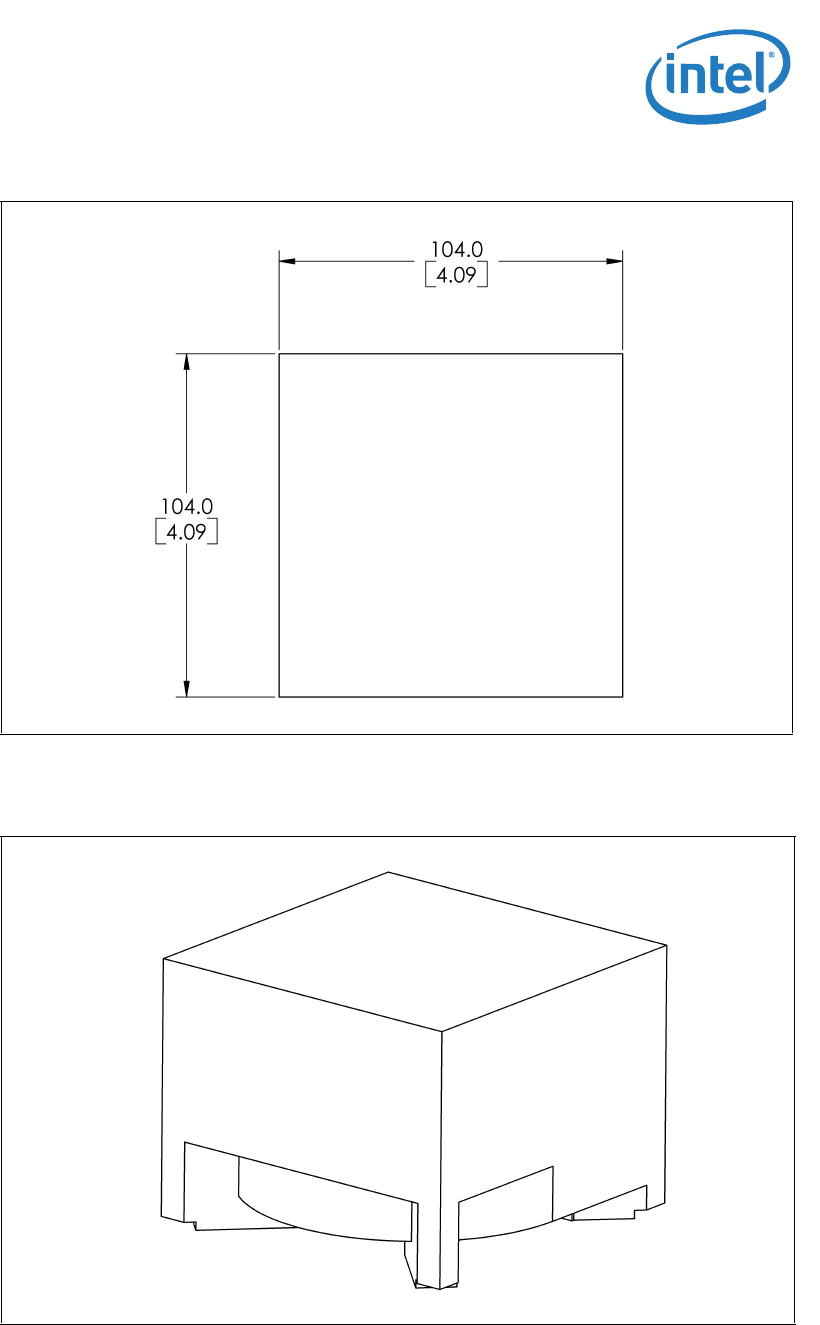

Figure 8-3. Space Requirements for the Boxed Processor (top view)

Figure 8-4. Space Requirements for the Boxed Processor (overall view)
