Product Description

1.1.3 Block Diagram

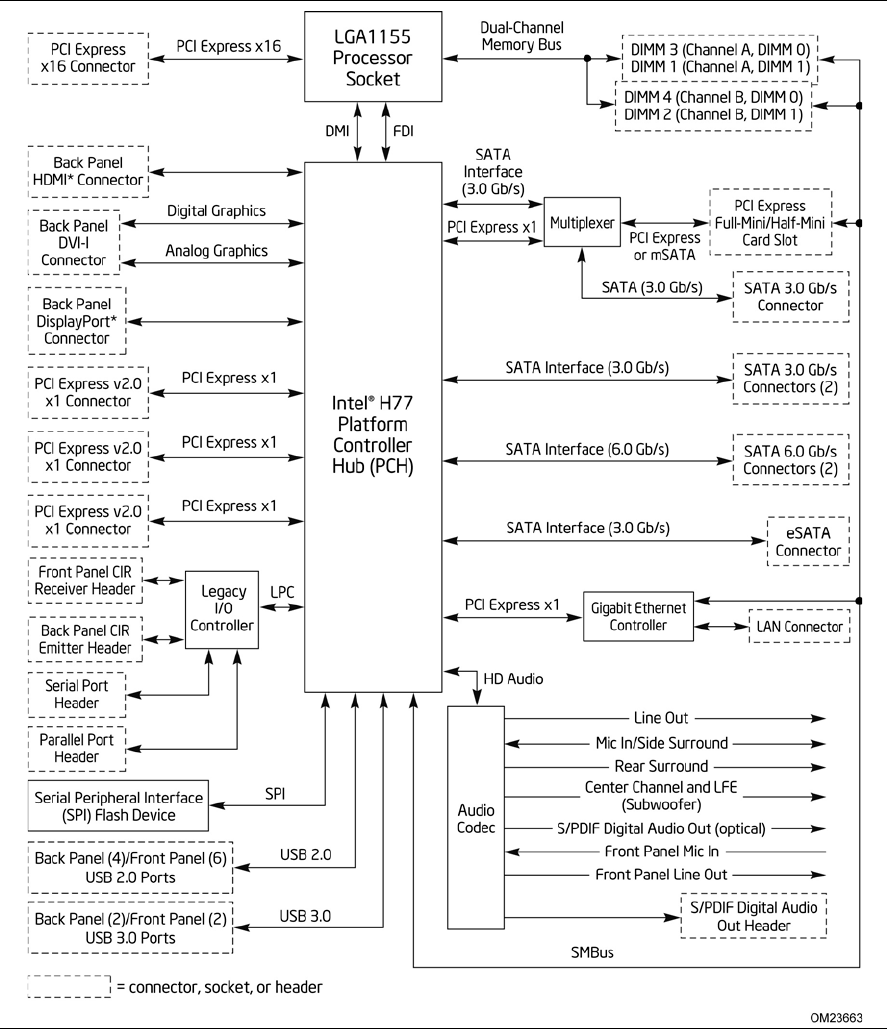

Figure 2 is a block diagram of the major functional areas of the board.

Figure 2. Block Diagram
